SPPE-1000 (Incremental Linear Encoder)

  • Atomic scale (7.6 picometer), ultra-precision position encoder based on NanoWave's patents and FPGA engine.
  • Reflective diffraction position encoder based on NanoWave's Scanning Probe Position Encoder (SPPE) technology.
  • FPGA based signal processing core, achieving fast and customizable performance.
  • Optical fiber guided light source virtually eliminating the heat source near measurement environment.
  • Differential measurement with an integrated reference scale for long-term stability.
  • Long working distance (2.4mm ) between the head and the scale for easy set-up.
  • Wide set-up tolerance.
  • Competitve with capcitance sensor.

Download SPPE-1000 Product Brief

Download SPPE-1000 White Paper

More SPPE-1000 Information at NanoWave technical blog.

manual SPPE Product Manual



MPM300

MPM300 (Digital Interpolator with Advanced Signal Processing)

  • Compatible with Digimicro Encoders, Nikon Absolute Linear Encoders and Digital A-Quad-B Encoders.
  • Automatic DC offset, amplitude and phase distortion compensation for analog encoder input signals.
  • 1 nanometer resolution FPGA core with Nikon Digimicro encoder.
  • High Speed USB 2.0 PC support, USB powered.
  • PID motion control core with 18-bit delta-sigma DAC ready output.
  • A quad B digital input/ output.
  • Large LCD Display suitable for machine shop environment.
  • 5 high-speed differential pairs for general purpose digital IO
  • Automatic power management
  • Programmable FPGA core and customizable LCD interface upon request.
  • ROHS compliant.
  • Compatible with CP300 data acquisition and visualization software.
  • .NET API for custom software development.
  • Compatible with software such as Matlab and Labview.
  • 40MHz 1.2M gate FPGA technology
  • Ask us about our MPM300-Digimicro Bundle!

MPM300-Product Brief

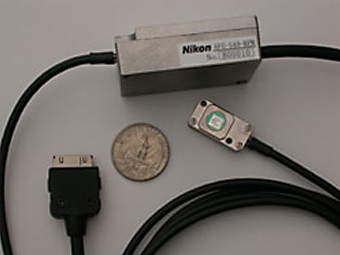

SAL-S40N (59 nm Resolution Absolute Linear Encoder)

The SAL-S40N is one of the first encoder in its size and class that is offered as an open type encoder. In this configuration, the encoder and scale are separate, allowing customers to build their own unique configuration. SAL-S40N encoder’s technology is based on Nikon’s successful absolute rotary encoders (#1 market share in Japan), which serve many of the industrial robotics and automotive industries.

  • Nikon M-series one track absolute encoder technology
  • 58.59 nm  resolution.
  • 32 mm measurement range.
  • Battery backup is not necessary to retain position information.
  • Easy-to-install reflection type micro head (8.2 × 12.7 × 25.0mm).
  • Nikon A-format output / industry standard for rotary encoder.
  • Directly compatible with MPM300-OEM motion processing unit.

SAL_S40N



MH12-MPM (Nanometer Resolution Incremental Encoder)

  • Travel range = 12 mm
  • Min resolution = 1 nm
  • Speed (@ 1 nm res.) = 400 mm/s
  • Lifetime without degradation > 1,000,000 cycles
  • Accuracy (@ 20 C +/- 1 C) full range = +/- 700 nm or better
  • MPM300-OEM compatible

MH12_MPM



MF501-MPM (Nanometer Resolution Incremental Encoder)

  • Travel range = 50 mm
  • Min resolution = 1 nm
  • Speed (@ 1 nm res.) = 400 mm/s
  • Lifetime without degradation > 1,000,000 cycles
  • Accuracy (@ 20 C +/- 1 C) full range = 1 micron
  • MPM300-OEM compatible

MF501_MPM



MF1001-MPM (Nanometer Resolution Incremental Encoder)

  • Travel range = 100 mm
  • Min resolution = 1 nm
  • Speed (@ 1 nm res.) = 400 mm/s
  • Lifetime without degradation > 1,000,000 cycles
  • Accuracy (@ 20 C +/- 1 C) full range = 3 micron
  • MPM300-OEM compatible

MF1001_MPM



MS21

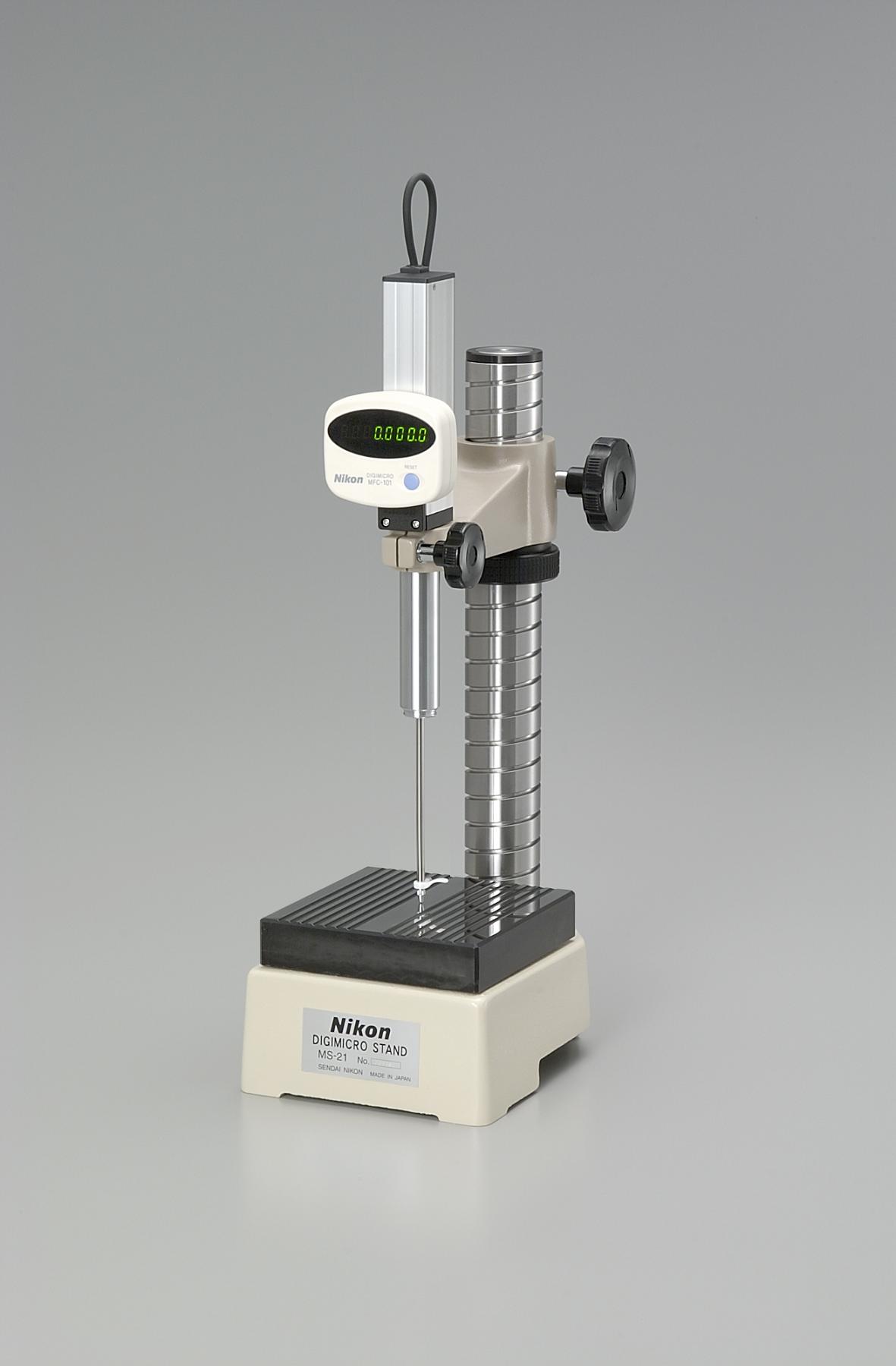

DigiMicro Incremental Encoder Head Stands

Digimicro heads come with a variety of accessories including MS-11C (Ceramic), MS-21(Steel), MS-31G(Granite), MS-4G and MS-5C head stands.
These stands are manufactured by Nikon's standard high-precision surface finish and flatness.



probe2

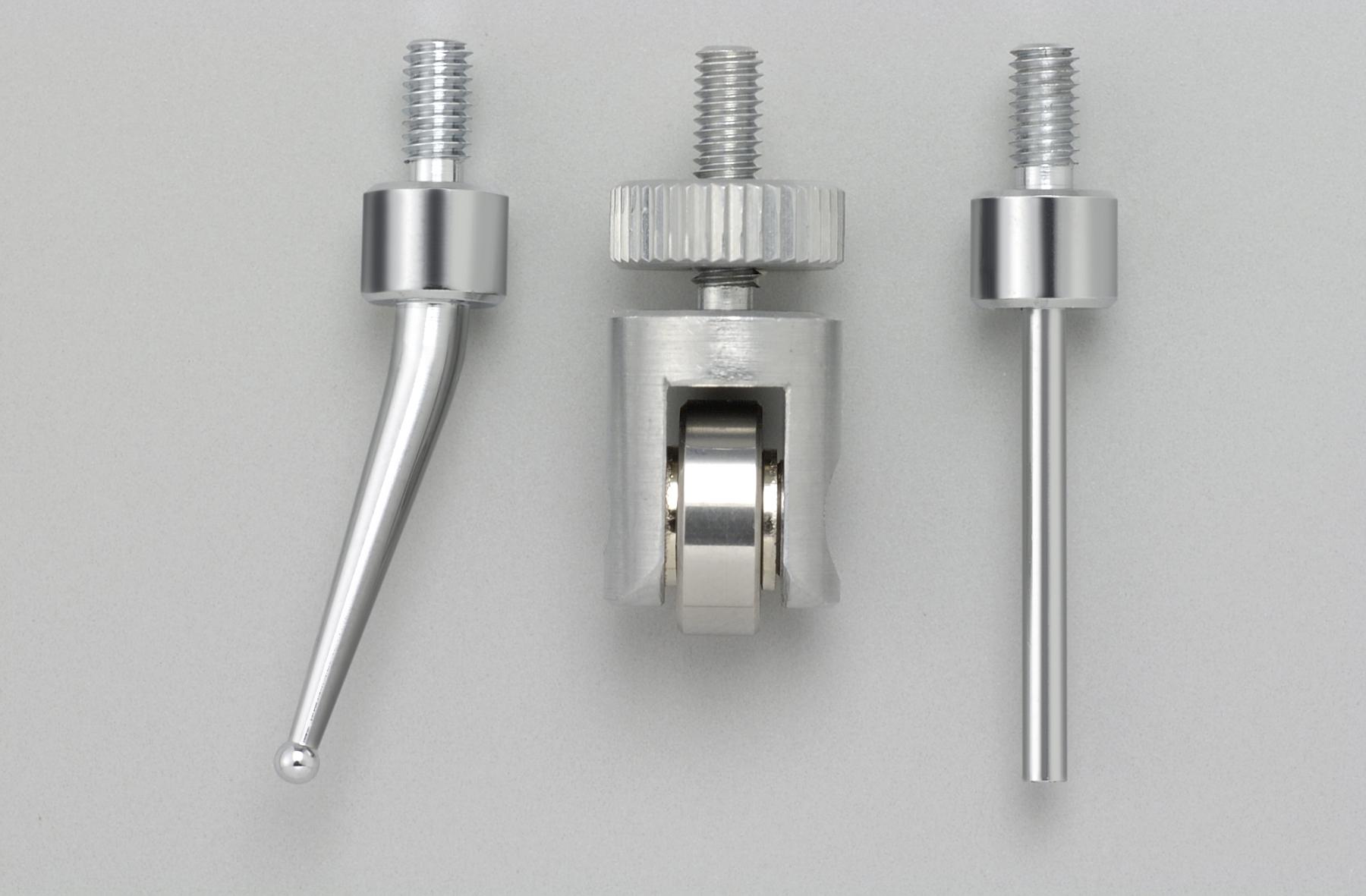

DigiMicro Incremental Encoder Probes

Digimicro heads come with a variety of accessories including interchangable probes.



CP300

CP300 (Data Visualization and Acquisition Software)

CP300 software comes standard with the purchase of all MPM hardware. Features includes:

  • Digital oscilloscope like PC application for monitoring position, velocity and other internal register status.
  • Up to 20 kHz continuous sampling.
  • Monitor input data and trigger alarms when upper or lower limits exceeded.
  • Simple storing and retrieving of waveform data.
  • Save continuous input data as a text file that can be imported into other applications such as Matlab and Excel.
  • Hardwired PID motion controller and development environment (option).
  • Quick installation and setup for Windows XP/2K/Vista Operating System (requires .NET framework).
  • FREE!

Download CP300 Software with .NET

Download CP300 Software only
