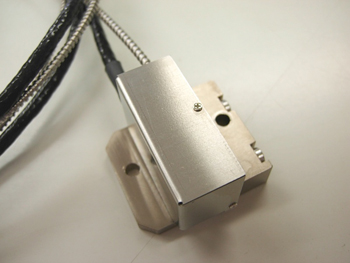

FEATURES OF SPPE-1000 SYSTEM

1. Optical position encoder based on NanoWave Patented SPPE technology
2. 7.6 picometer resolution
3. FPGA based signal processing core achieving fast and customizable performance
4. Optical fiber guided light source virtually eliminating the heat source near measurement environment
5. Long working distance (2.4mm) between the head and the scale for easy set-up
6. Extremely stable synchronous index position
7. 4 um grating pitch allows wide set-up tolerance
8. Applications include semiconductor equipments, high-precision machining and diamond turning machine.

Download the product brief

Download the product manual

Download SPPE-1000 White Paper

Watch the SPPE-1000 Analog Signal

More SPPE-1000 information at NanoWave technical blog.

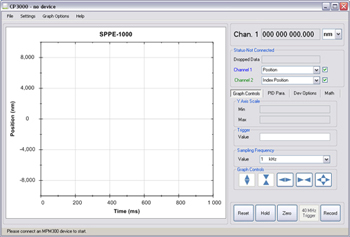

SPPE-1000 system also comes with CP3000, a Windows-based software which allows user to visualize and save data . Addition to CP300 features, CP3000 will have the features below.below:,

• Simultaneous selectable dual channel input data.
• Third channel data provides the result of math operation between the two data channels.
• Control and monitor multiple MPM devices from one software application.
• Up to 20 kHz continuous sampling and 40MHz manual sampling.
• Hardwired PID motion controller and development environment (option).

Download CP3000 software with .NET

Download CP3000 software only

NOTE: Specification subject to change without notice.

NanoWave SPPE technology is also available today for licensing. See Technology Licensing.
